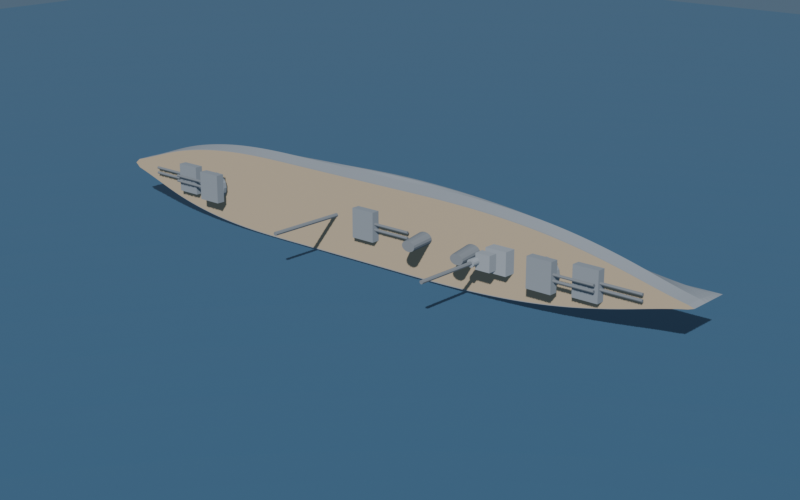

Amagi-class battlecruiser (3D reconstruction from line drawings)
- Ship class
- Amagi class
- Ship type
- Battlecruiser
- Main gun
- 41cm
- Turret layout
- 2-1-2
- Length (WL)
- 246.9 m
- Beam
- 30.5 m
- Draught
- 9.53 m
- Displacement
- approx. 41,000 t
- Speed
- 30 kt
- Funnels
- 2
- Date
- c.1918-20
- Reconstruction method
- Parametric reconstruction from line drawings and principal dimensions (cross-checked across agents)
- Provenance (source drawings)
- Hiraga Yuzuru Digital Archive (University of Tokyo)
- CAD data (STEP)
- https://archivebase-s3.ldas.jp/archivebase/nakamura196/3aa78bb8-ca3d-4076-8278-ebdf4a2fd342/hull.step
- Mesh (STL)
- https://archivebase-s3.ldas.jp/archivebase/nakamura196/115267c3-028f-4828-9937-d73d1220fb59/hull.stl
A 3D reconstruction of the Amagi-class battlecruiser, lofted parametrically from only the principal dimensions (length, beam, draught, displacement) and the midship-section offsets measured from the B-C body plan held in the Hiraga Yuzuru Digital Archive (University of Tokyo). Displacement was calibrated via the prismatic coefficient (bisection); watertight mesh (STL/GLB) and exact CAD surfaces (STEP) were exported after lofting. The model satisfies the drawing’s principal dimensions and is not a faithful reproduction of the original design in every detail.
